Blue Sea 8380 DC Main + 22 Position [8380]

Main + 22 Positions

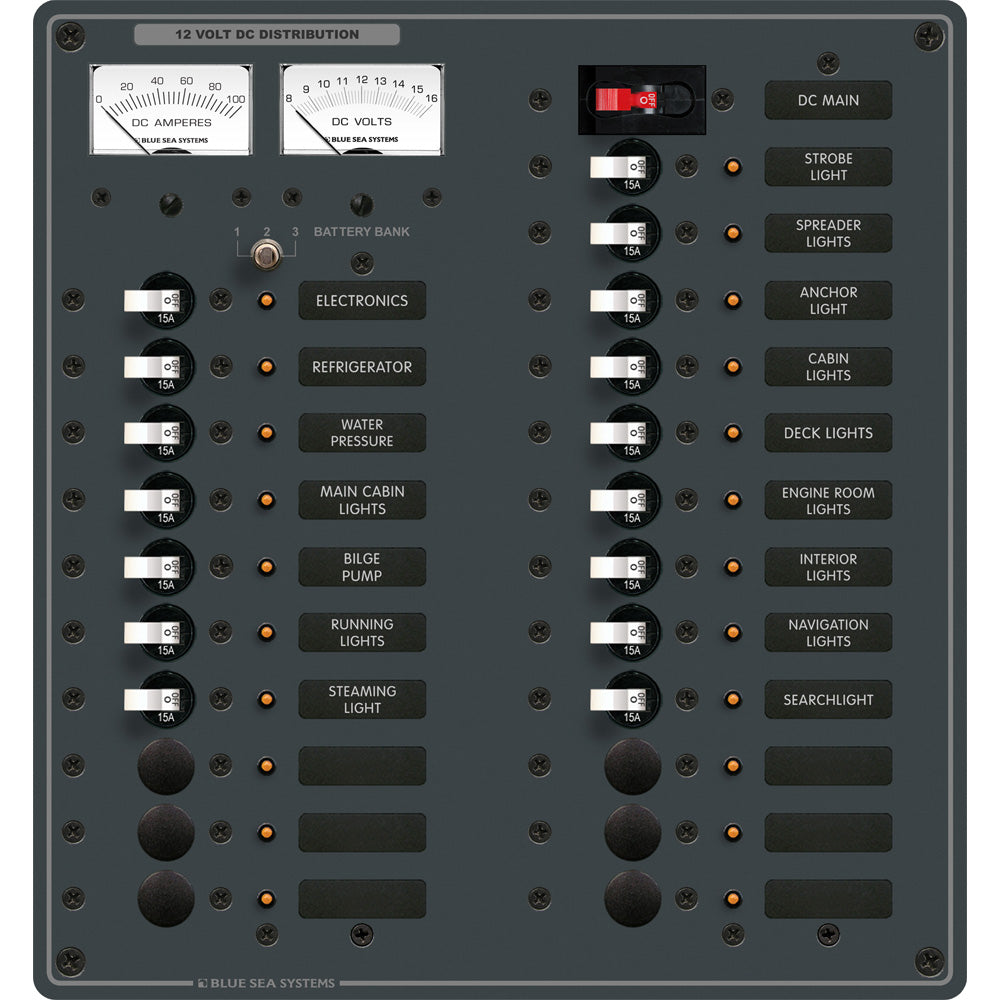

• It comes with (16) 15A Single Pole Circuit Breakers, (1) 100A C-Series Main Circuit Breaker, (1) 8028 DC Micro Voltmeter, and (1) 8250 DC Analog Micro Ammeter.
• Equipped with white switches.
• Features:
• All positive, negative and grounding buses are installed and fully pre-wired for easy setup.
• Panels with meters have a toggle switch to mount up to 3 battery banks.
• You can upgrade analog meters to 24 Volts with 8240 or 8243 (18 - 32V DC meters).
• All circuit label positions on standard panels are backlit, no extra kit needed.
• 'ON' indicating LEDs are installed in all circuit positions.
• It has MIL-C-5541C or equivalent immersion undercoating for long - lasting corrosion resistance.
• Finished with a two - part polyurethane slate gray coating.
• Made of heavy 1/8' aluminum 5052 alloy.
• It meets industry standard height and width.
• There are countersunk mounting holes all over.
• Comes with detailed installation instructions and a cutout template.
• Includes a set of 30 common Large Format Panel Labels, and over 500 individual labels are available.

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 22
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 7'H x 14'W x 22'L WT: 8.3 lbs
• UPC: 632085083809

Quick Guide (pdf)

Owner's Manual (pdf)

Using this Blue Sea 8380 DC main panel is quite straightforward. First, follow the detailed installation instructions included in the package. Use the cutout template to make the right space for the panel. Connect the positive, negative, and grounding buses as they are already pre - wired for your convenience. The toggle switch on panels with meters allows you to mount up to 3 battery banks. If you want to upgrade the analog meters to 24 Volts, you can use the 8240 or 8243 (18 - 32V DC meters). Pay attention to the warning. This product contains chemicals that can be harmful, so handle it carefully. For maintenance, since it has an immersion undercoating, it's resistant to corrosion, but it's still a good idea to check it regularly for any signs of damage. The white switches and the circuit label positions with backlighting and 'ON' LEDs are easy to see, but keep them clean to ensure good visibility. Also, if you need more labels, there are over 500 individual labels available in addition to the set of 30 common Large Format Panel Labels that come with the product.
