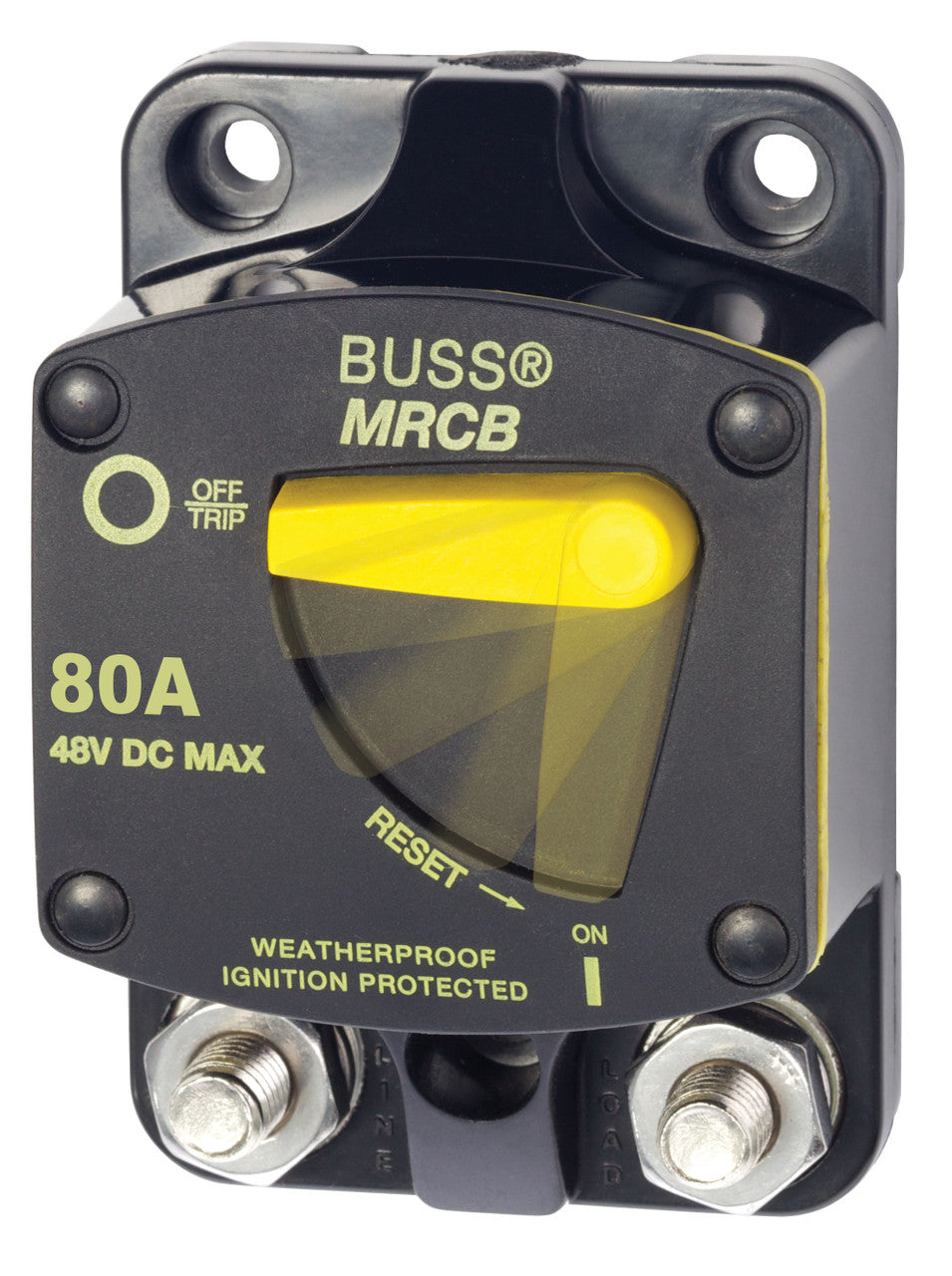

Blue Sea Systems 187-Series 80A Surface Mount Circuit Breaker (Model: 7142-BSS). This circuit breaker combines switching and protection in one. It features clear single-lever operation and a 'Trip Free' design that can't stay 'ON' during a fault. It's waterproof with recessed mounting holes for a clean look. The large terminal studs can accept heavy gauge wire lugs, and the robust 5/16 M8 terminals provide high-torque connections. The large lever shows trip status in vertical or horizontal orientation. It's ignition protected, safe for gasoline-powered boats and meets SAE J1171 requirements. Note: Don't use as a switch for high inrush currents. Specifications: Amperage 80A, Max Voltage 48vDC, Surface Mount, Thermally responsive Bi-metal blade, Terminal Stud Torque 75 in-lb (8.47 Nm), Interrupt Capacity 5000A @ 12V, 3000A @ 24V, 1500A @ 42V, Min Operating Temp -40° C, Max Operating Temp 85° C, Case Material Thermoset Polyester, Circuit Breaker Class Type III - switchable/manual reset - trip free, Mounting Hole accepts #10 (M5) Screw, Terminal Stud Size 5/16' - 18.
Using this Blue Sea circuit breaker is easy. First, make sure to mount it on a flat surface using the provided #10 (M5) screws. Connect your wires to the 5/16' - 18 terminal studs, making sure to tighten them to the recommended 75 in-lb (8.47 Nm) torque. The large lever will show you if the breaker has tripped. When the breaker trips, don't try to force it back on during a fault current. Instead, find and fix the problem first. Keep in mind that this breaker isn't suitable for high inrush current situations. For maintenance, check the breaker periodically for any signs of damage or wear. Since it's waterproof, it can handle some exposure to moisture, but avoid submerging it. Store it in a dry place when not in use, and keep it within the -40° C to 85° C operating temperature range.
