Faria Chesapeake White SS 4 Tachometer w/Systemcheck Indicator - 7000 RPM (Gas) (Johnson/Evinrude Outboard) [33850]

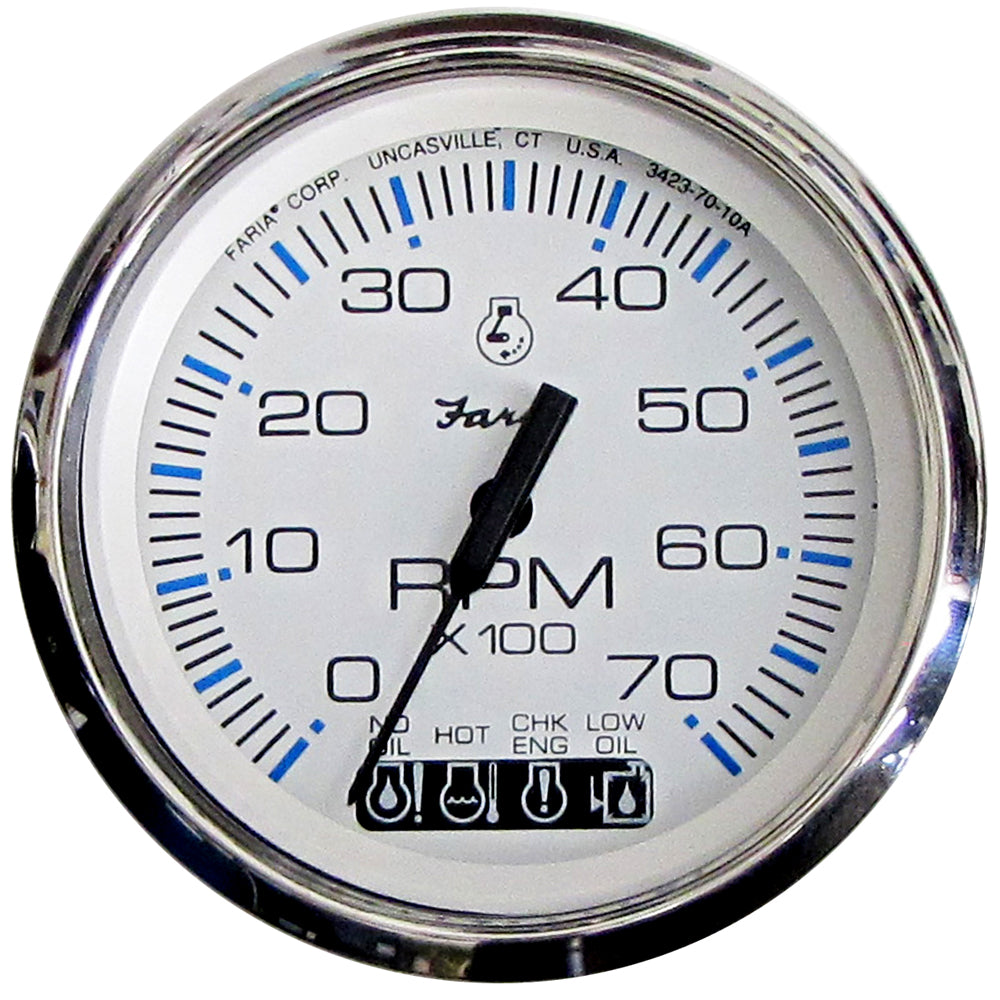

The Chesapeake White 4-inch tachometer with Systemcheck indicator is designed for Johnson/Evinrude outboard gas engines with a 7000 RPM limit. It features a perimeter - lighted white dial with trendy blue and white graphics, a polished stainless - steel bezel, a contoured white pointer, and a domed anti - scratch glass lens. Tachometers measure engine RPM by counting pulses from the ignition system, alternator, or other signal sources. Simply connect it to +12VDC, ground, and a signal source, and set the switch on the back to the right position for accurate readings. This tachometer has a built - in warning light system that shows indicators for no oil, engine overheat, check engine, and low oil. With a 3.375 - inch (85mm) hole size, it's easy to install. It comes with a plastic case for corrosion resistance and long - term use. It runs on 12 VDC negative ground but can be adapted for 24 VDC systems. Factory P/N TC9881. Sold individually, gauge cover not included. Note: This product may not be returned to the point of purchase. Contact the manufacturer directly for issues. Gauge Type: Tachometer with System Check. Series: Chesapeake White. Voltage Input: 12/24 V. Gauge Size: 4 inches. Box Dimensions: 5'H x 6'W x 6'L, 0.7 lbs. UPC: 759266338500. Quick Guide (pdf).

Using this tachometer is quite straightforward. First, find a suitable spot on your dashboard to install it. The hole size you need to drill is 3.375 inches (85mm). Connect the tachometer to +12VDC, ground, and one of the signal sources like the ignition system, alternator, tach signal generator, or magnetic pickup sender. After that, set the switch on the back of the tachometer according to how many pulses are sent per engine revolution. When you start your engine, the tachometer will show the RPM. Keep an eye on the warning lights. If you see a warning for no oil, engine overheat, check engine, or low oil, stop the engine right away and check for problems. For maintenance, since it has a plastic case, it's corrosion - resistant, but it's still a good idea to keep it clean. Wipe it gently with a soft cloth from time to time. Remember, this product can't be returned to where you bought it. If you have any issues, contact the manufacturer directly.
