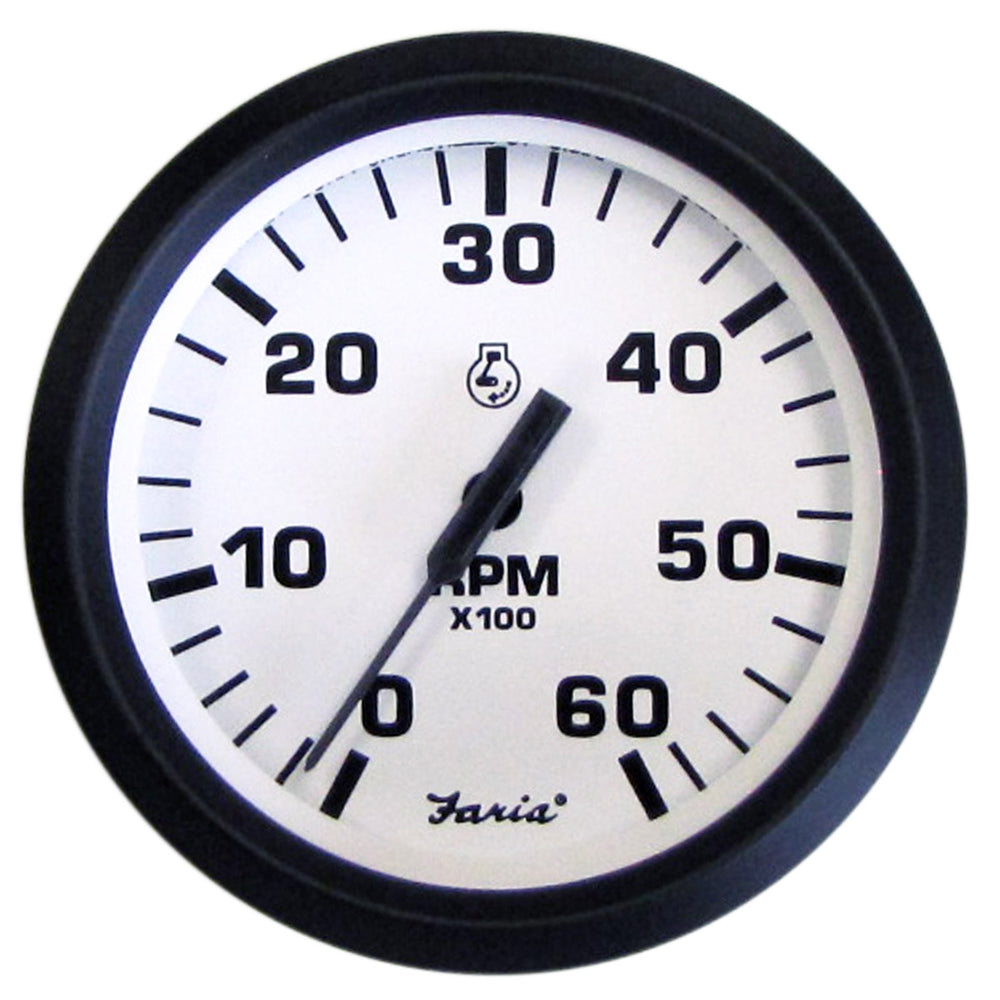

Faria Euro White 4 Tachometer - 6000 RPM (Gas) (Inboard I/O) [32904]

The Faria Euro White 4' Tachometer is designed for gas engines with an inboard or I/O setup and has a 6000 RPM range. It features a perimeter - lighted white dial with bold black graphics, a black aluminum bezel, a contoured white pointer, and a flat anti - scratch glass lens. This electronic tachometer counts pulses from the ignition system, alternator, tach signal generator, or magnetic pickup sender. Just hook it up to +12VDC, Ground, and one of the listed signal sources. By choosing the right tach and setting the back switch correctly, it can detect the number of pulses per engine revolution. With a 4' size and a hole size of 3.375' (85mm), it's a great fit. It operates on a 12 VDC negative ground and can be adapted for 24 VDC systems. Factory P/N is TC9679. Sold individually, gauge cover not included. This product may not be returned to the original point of purchase, contact the manufacturer for issues. Gauge Type: Tachometer, Series: Euro White, Voltage - Input Range: 12/24 V, Gauge Size: 4', Not a box set, Box Dimensions: 5'H x 6'W x 6'L, Weight: 0.7 lbs, UPC: 759266329041. Quick Guide (pdf).

Using this tachometer is easy. First, make sure you've selected the right one for your engine type. Then, connect it to +12VDC, Ground, and one of the signal sources like the ignition system or alternator. After that, set the switch on the back to the correct position so the tachometer can read the number of pulses per engine revolution. When it comes to maintenance, keep the anti - scratch glass lens clean with a soft, dry cloth. Avoid using harsh chemicals. If you're using it in a 24 VDC system, double - check the adaptation is correct. Remember, this product can't be returned to the original place of purchase. If you have any problems, reach out to the manufacturer directly.
